Valves

Brand: Hunt Valve Descaling systems that use an accumulator require an accumulator safety shut-off valve to prevent the inadvertent loss of the pneumatic charge into the system due to a low-level condition. Loss of the pneumatic charge typically results in costly unplanned downtime to recharge the system. Hunt Valve’s ceramic seated poppet and plunger-style descale valves are well-suited for use as accumulator low-level safety shut-off valves. Both valve configurations offer the same reliability and long service life as they do on spray header control applications. The following actuation and control options are available for our ceramic seated poppet and plunger-style descale valves: Valve actuation - Electromechanical for maintenance-free operation on our ceramic seated poppet valve - Pneumatic or hydraulic actuation on our plunger-style valves Valve control - Performed via a signal from an accumulator-level control probe (also available from Hunt Valve) Hunt Valve’s accumulator low-level control valve designs are configured to fail closed in all models to prevent the release of the accumulator air charge into the descale system due to a low-level condition.

Strainers within a descale system should be included for each descale spray valve for the large filtration of high-pressure water (700-micron level). The strainers are installed prior to the descale spray valves to protect the internal components of the valve from large debris. At Hunt Valve, our rugged strainers can withstand the severe-duty cycles of the industrial descale systems in steel mills. These high-pressure devices are designed to avoid the plugging of descaling spray nozzles, resulting in scrap product and profit loss due to surface quality defects such as scale streaks. Strainers placed in the line with the descaling valve prevent any foreign material that’s large enough to be harmful from reaching the spray nozzles. Hunt Valve’s strainers are also used to protect the internal parts of the operating valves. All foreign particles filtered out of the stream of water passing through the strainer are stopped by the grooved rings and collect outside the strainer basket. The basket can be cleaned by removing it from the housing and spraying a jet of compressed air between the rings. Product Specifications: - The maximum working pressure for all sizes is 5,800 psi. (As the basket clogs over time, the outlet pressure will drop. This differential pressure must be monitored to avoid damage to the element and subsequent damage to other system components.) - The standard filtration rating is 711 micron; custom ratings are available to suit your nozzle requirements. - Installation is allowed in the horizontal or vertical positions. - While standard ANSI and DIN flanges are the most common, special configurations are also available.

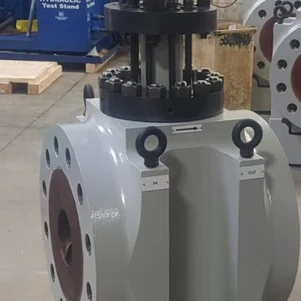

Brand: Hunt Valve Hunt Valve’s new Mega-Flo C Descale Valves are the longest lasting plunger-style descale valves available. This ultra-durable plunger-style descale valve saves customers 33% on the total cost of ownership over competitors’ poppet style valves. The savings is based on the initial purchase price and maintenance requirements over the first three years of service, then a 50% reduction in maintenance costs thereafter. Why Hollow Plunger Technology delivers better durability Zero Leakage and extended durability: - Since the UHMW plunger seals create a zero leakage seal, internal component damage from water jetting is eliminated. - Since the UHMW plunger seals are only directly exposed to the high velocity water flow for 1-2 seconds per shift, wear is minimized. - Since the UHMW plunger seals are pushed away from the surface of the plunger when shifting the valve, wear is minimized resulting in longer service life and improved contamination tolerance. Product Features: - State-of-the-art valve based on Hunt’s proven core plunger technology. - Advanced materials used in Hunt’s proven integral pressure breakdown design. - Forged housing designs are treated for corrosion and wear protection to extend the service life of the housing. - Stainless Steel Housing Liner can be replaced in the field. - Upgraded cylinder design for less corrosion, wear and friction due to the following: Nitrocarburized piston rod and tie-rods. Low friction urethane piston and rod seals. 60 RC hard anodized cylinder bore. - Low-turbulence flow plunger design. - Plunger contained in the pressure vessel for safety. - Staggered flow slots provide gradual acceleration and deceleration of flow during plunger shifting to prevent water hammer. - Proximity switch or Transducer options for position feedback. - Isolated air actuator, kept away from the high-pressure fluid. - Anti-extrusion seals without grease requirements. - Seal is pushed away from the plunger by the fluid pressure during shifting to prolong life. - Sealing surface is NOT exposed to the water flow path when valve is open or closed. Mega-Flo Cartridge-Style Plunger Assembly Extend the life of your existing valve installation by replacing your old-style cartridge. The Mega-Flo C cartridge assembly is a drop-in fit to the existing Mega-Flo A or B installation for easy field upgrade capability. It offers the benefits of the Mega-Flo C enhancements without having to replace the entire valve system. The cartridge is a 40% cost savings versus purchasing a complete new valve. Electromechanical Actuator for Precision Control Do you have cooling issues with your strip from continuous header pre-fill flow? An electromechanical actuator shifts the plunge from the pre-fill flow position to the full off position to reduce this problem. The new linear actuator design provides precision control. Besides solving your cooling issues, this actuator: - Provides the necessary prefill to prevent water hammer and resulting header damage. - Eliminates the maintenance and reliability concerns of operating an external high-pressure solenoid-operated prefill control valve. - Relieves safety, maintenance and reliability issues of operating a low-pressure prefill system. - Offers flexibility to shut off the prefill flow when not required, thus providing increased flow and pressure available for descaling to the system or a significant energy cost savings if one pump can be shut-down by eliminating all of the continuous prefill lines in the system.

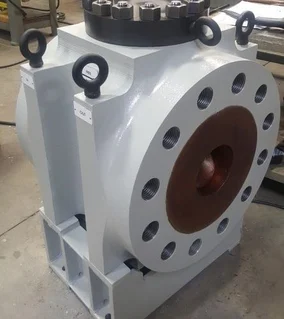

Brand: Hunt Valve The Hunt Mill Duty (SPV) Descale Valve for descaling pump bypass applications incorporates robust construction and the world’s most advanced materials to deliver ultimate durability in a mill duty descale environment. This Mill Duty Pump Bypass Valve defaults to an open valve position. Our poppet descale technology addresses the common issues associated with valves commonly available for descale applications: - Pilot Valve Reliability and Durability. - Seat Wear and Erosion. Mill Duty Cartridge Offers Maximum Durability Hunt’s poppet design incorporates Heat Treated Stainless Steel Cartridge components with both soft and hard seat configurations for maximum durability. In addition, we offer optional hardfaced configurations for the ultimate in corrosion and wear resistance. Mill Duty Housing Hunt’s poppet design incorporates salt-bath nitrocarburising of the housing and cap to deliver mill duty corrosion and wear resistance.
